C-Scope General Purpose Sonde 8KHZ
C-Scope General Purpose Sonde 8KHZ
DESCRIPTION:

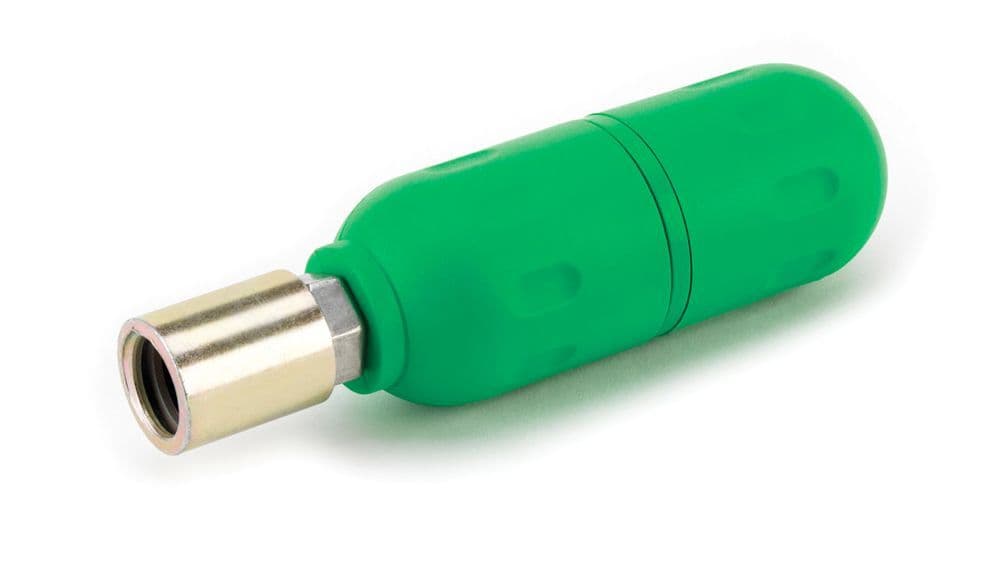

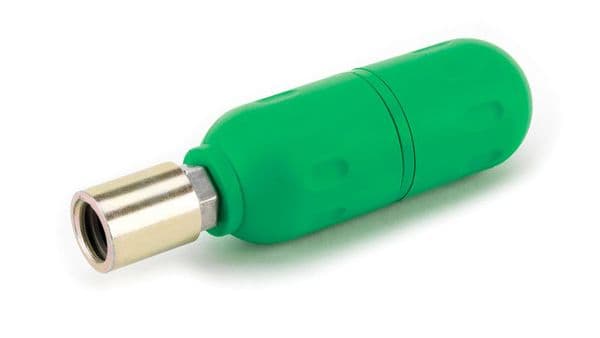

A C.Scope 8kHz General Purpose Sonde is a small battery powered transmitter hermetically sealed in a robust torpedo shaped case which which can be screwed onto the end of a drain rod and fed into a pipe. The pipe direction can be then be traced using a C.Scope Precision Pipe and Cable Locator. The location of a pipe blockage can be identified using this system with enormous cost saving potential.
OVERVIEW:
- Green case to identify the 8kHz version.
- 8kHz transmit signal allowing detection and tracing by a C.Scope Precision Pipe and Cable Locator.
- Simple to use.
- Very robust.
- Single AA battery operation.
- Fully weatherproof design to IP65.
- Adaptors available for different Drain Rod types.
SPECIFICATION:
Product Name
General Purpose Sonde 8kHz
Part No.
YIRS-8
Construction
Waterproof robust plastic.
Operating frequency
8192Hz continuous.
Range
5 – 7 metres dependant on Locator.
Dimensions
38mm diameter.
102mm length.
Fitting
M10 stud
Battery
1 x AA (IEC type LR6) typically giving up to 50 hours intermittent use at 20C.
General Purpose Sonde (8KHz) Manual
General Purpose Sonde (8KHz) Brochure
Please contact us or download the brochure if you would like to know more about the C.Scope accessories.
