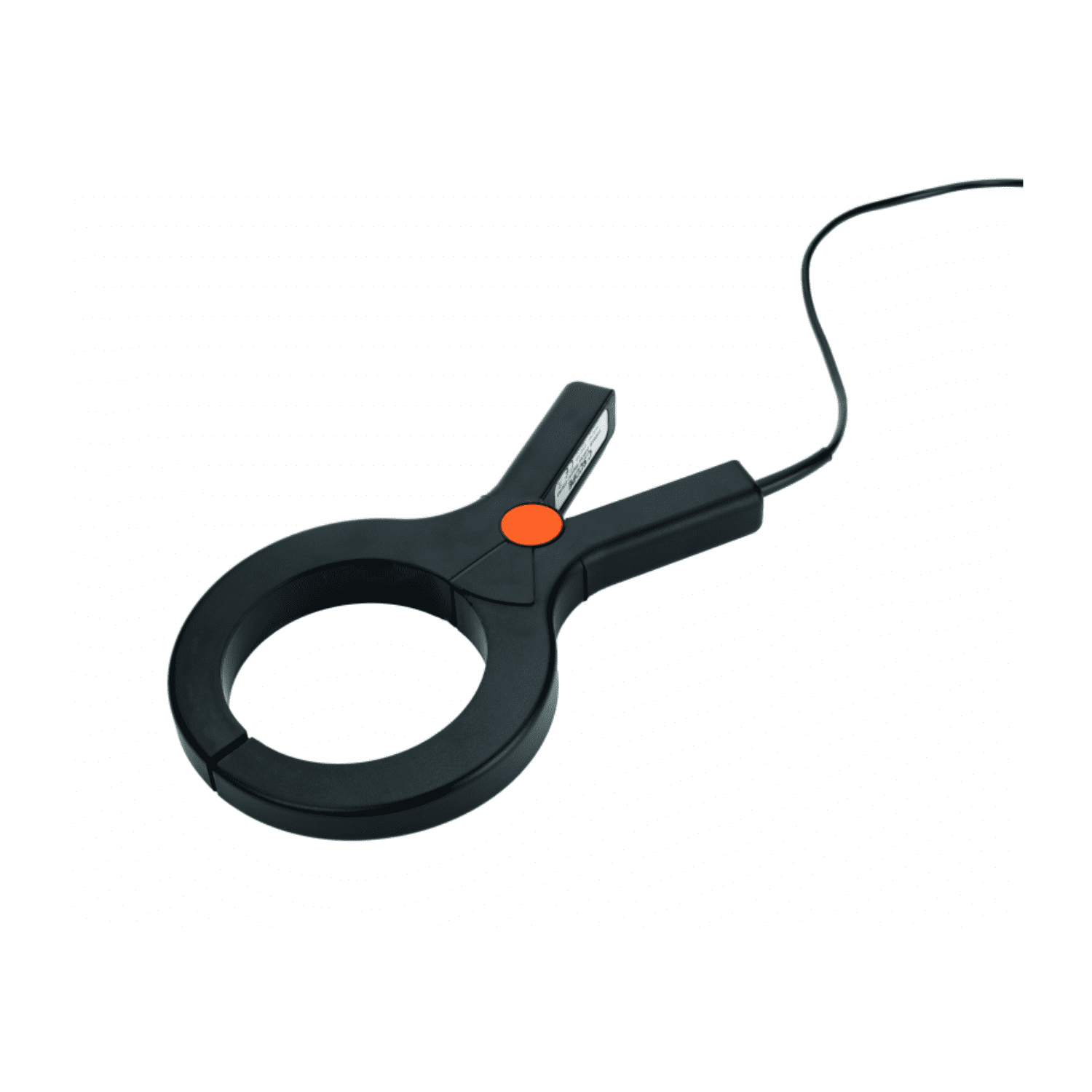

C-Scope Signal Clamp
A Signal Clamp is a safe and straightforward way to apply the Generator/Transmitter signal to a cable or small pipe to enable precision tracing of this service. The C.Scope Signal Clamp allows operators to apply the Signal Generator/ Transmitter signal effectively to any cable. It is an extremely practical way to allow individual cables to be traced even when the cable is in amongst other cables.
C-Scope Signal Clamp
DESCRIPTION:
A Signal Clamp is a safe and straightforward way to apply the Generator/Transmitter signal to a cable or small pipe to enable precision tracing of this service.
The C.Scope Signal Clamp allows operators to apply the Signal Generator/ Transmitter signal effectively to any cable. It is an extremely practical way to allow individual cables to be traced even when the cable is in amongst other cables.
SPECIFICATION:
Product Name
Signal Clamp
Part No.
YIRC-33-8
Construction
Toroidal induction ring housed in robust plastic.
Spring loaded jaws.
Optimisation
Tuned for optimum use with 33kHz Signal Generators.
Safety
Built to conform to BSEN61010-1:1993 and BSEN 61010-2-032:1995
Dimensions
270 x 160 x 28mm
Compatibility
Maximum service diameter = 105mm
Suitable for use with all C.Scope Signal Generators and Transmitters.
Please contact us or download the brochure if you would like to know more about the C.Scope accessories.
