NEW Nestle Pulsar H Laser
Description:

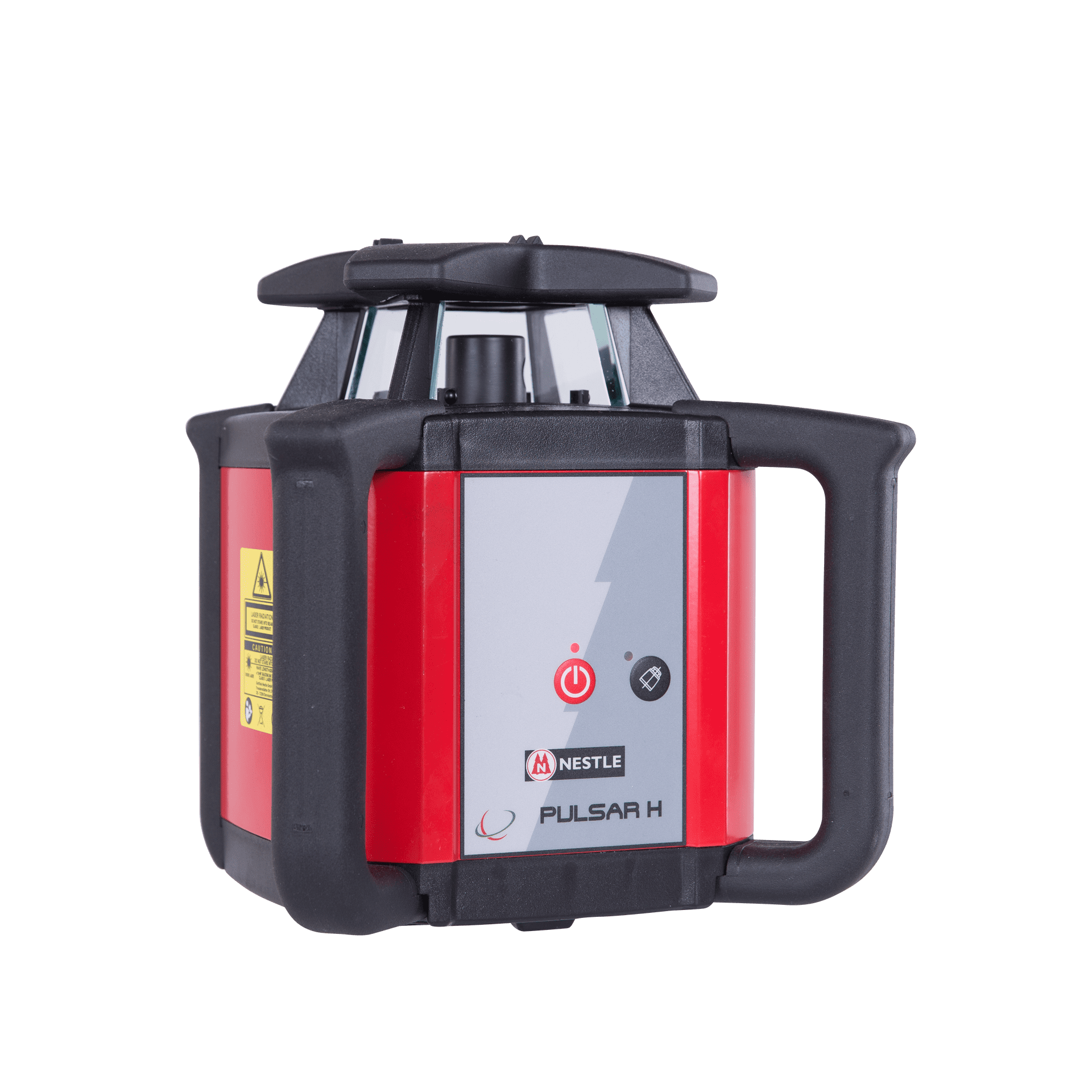

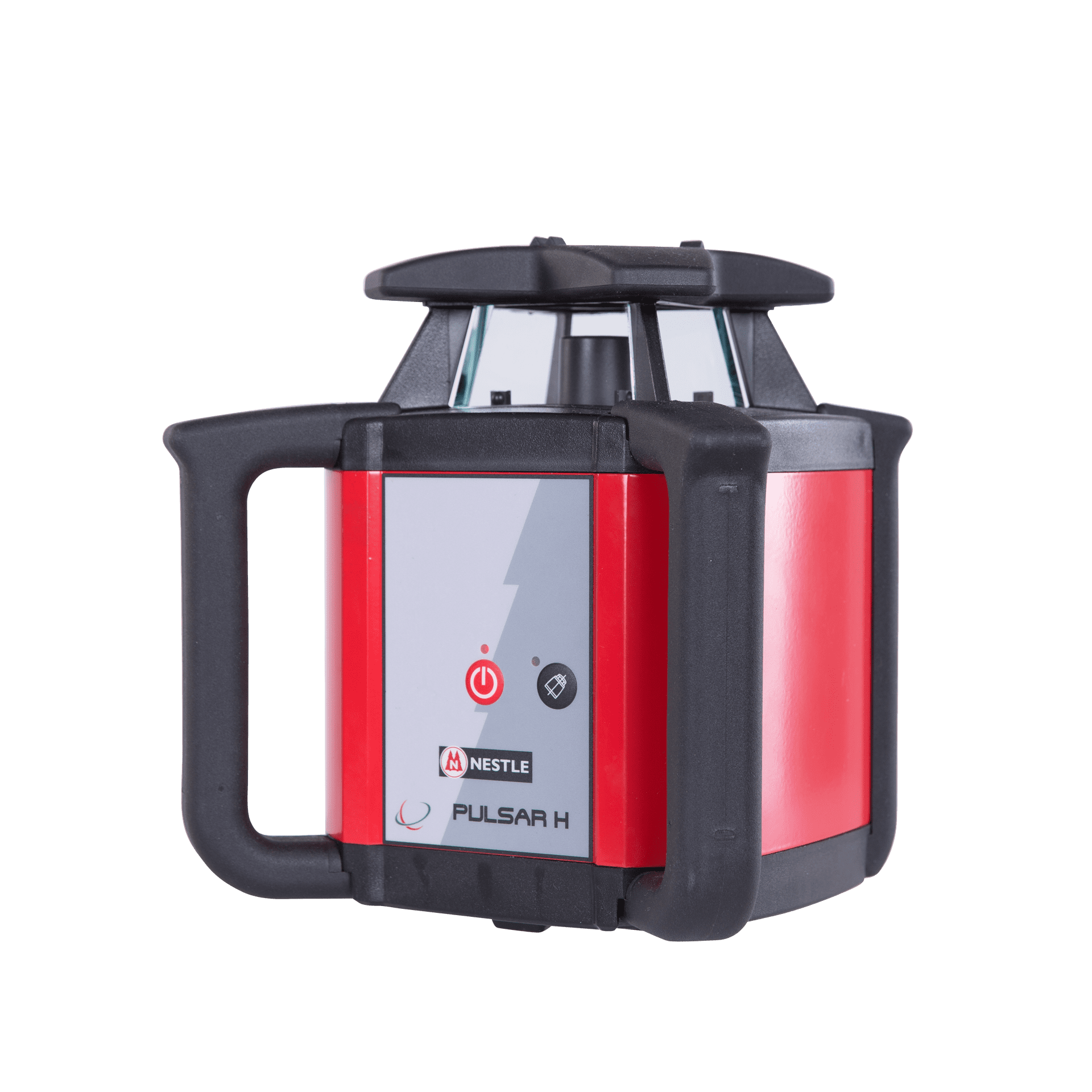

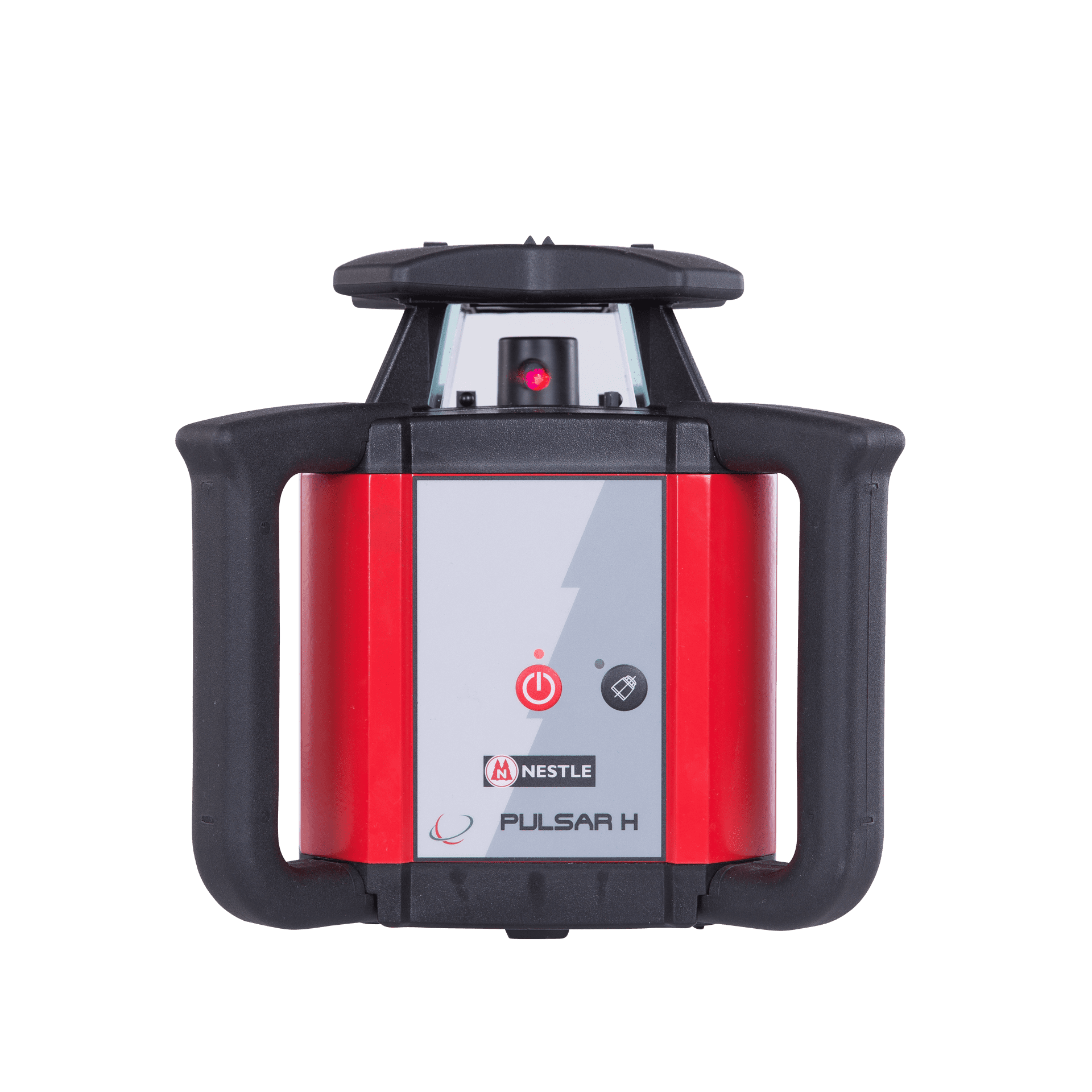

The PULSAR H is a fully automatic, horizontal rotating laser with a simple operating concept. In the event of vibrations or shocks, the laser automatically interrupts rotation and thus prevents measurement errors. The robust aluminium housing and high quality workmanship make it ideal for tough use. This kit includes a PRDG60 laser receiver with a mm display, which is unique in this class. This Laser can also be supplied with a 5M5S Staff and Tripod.
Highlights:
-
NESTLE PULSAR H - fully automatic horizontal laser
-
NESTLE levelling stand in medium-heavy design with standard head plate
-
NESTLE laser bar with sliding adapter and clamping lever (length 130 240 cm)
-
NESTLE laser receiver PDRG60 with mm display.

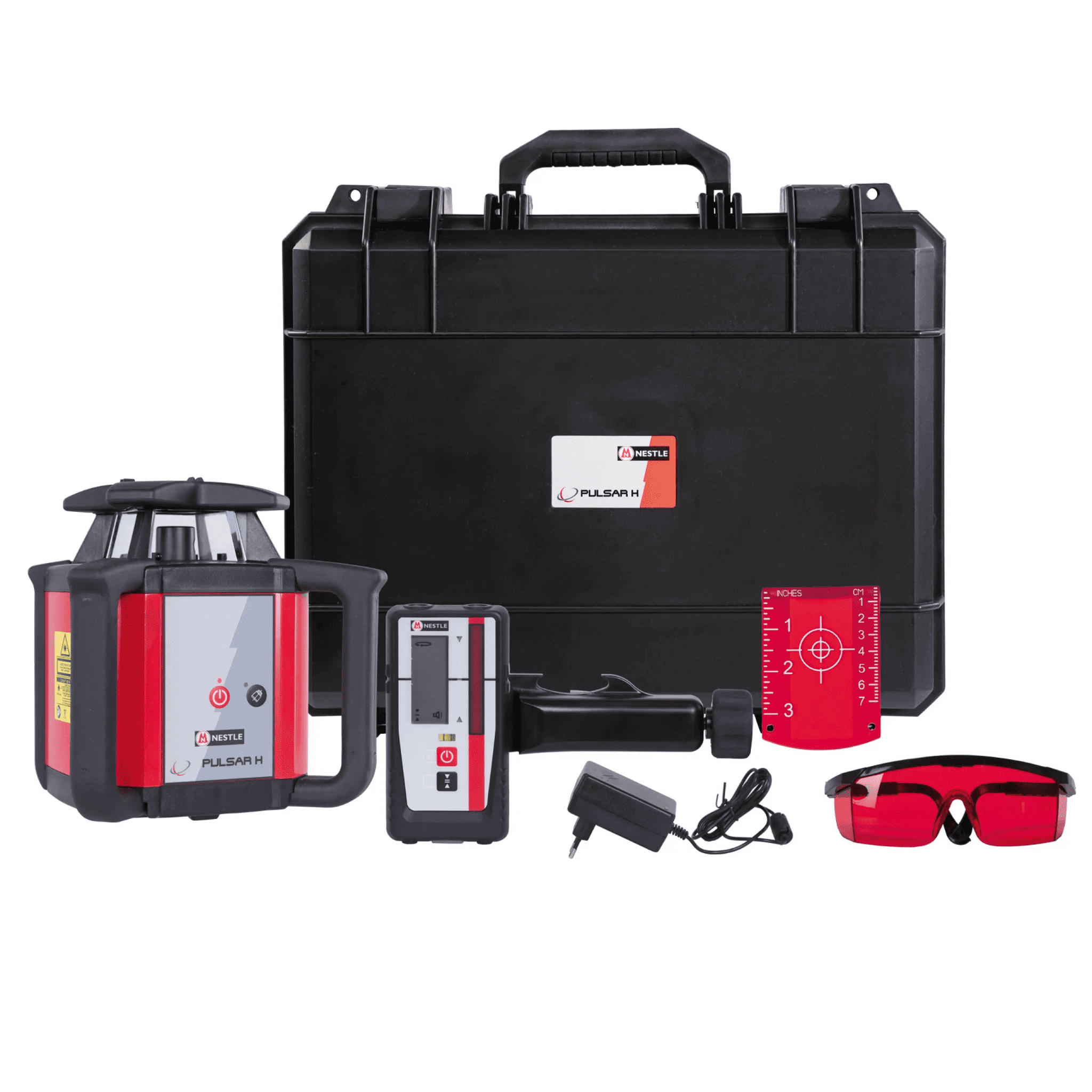

What's included:
NESTLE Pulsar H

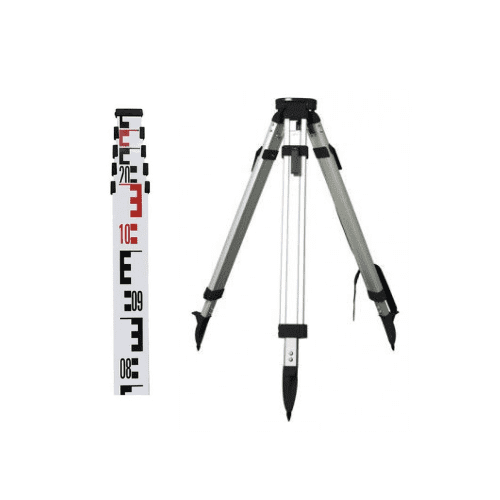

Tripod (Optional)
5M5S Staff (Optional)
Carrying case
Laser receiver PDRG60 with clamp
Charger
Target board
Laser goggles
Techical Data:
| Working area with receiver | Ø 600 m |
|---|---|
| Operating time | 20 Hours |
| Weight laser | 3000 g |
| Laser diode / colour | 635 nm, class 2 / red |
| Dimensions laser | 215 x 190 x 210 mm |
| Rotation speed | 600 Rpm |
| Protection class | IP65 |
| Self-levelling range | ± 5° |
| Temperature range | -20 °C to +50 °C |
| Tolerance | ±1 mm per 10 m |
| Product Number (PID) | 16019001 |
