Combining high-resolution visual cameras, advanced thermal imaging, laser measurement and intelligent flight capabilities, the Matrice 4TD provides a versatile solution for organisations that need detailed aerial data and the ability to inspect assets remotely.

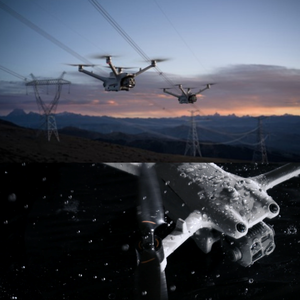

DJI Matrice 4TD Drone
Advanced thermal imaging and intelligent aerial operations.

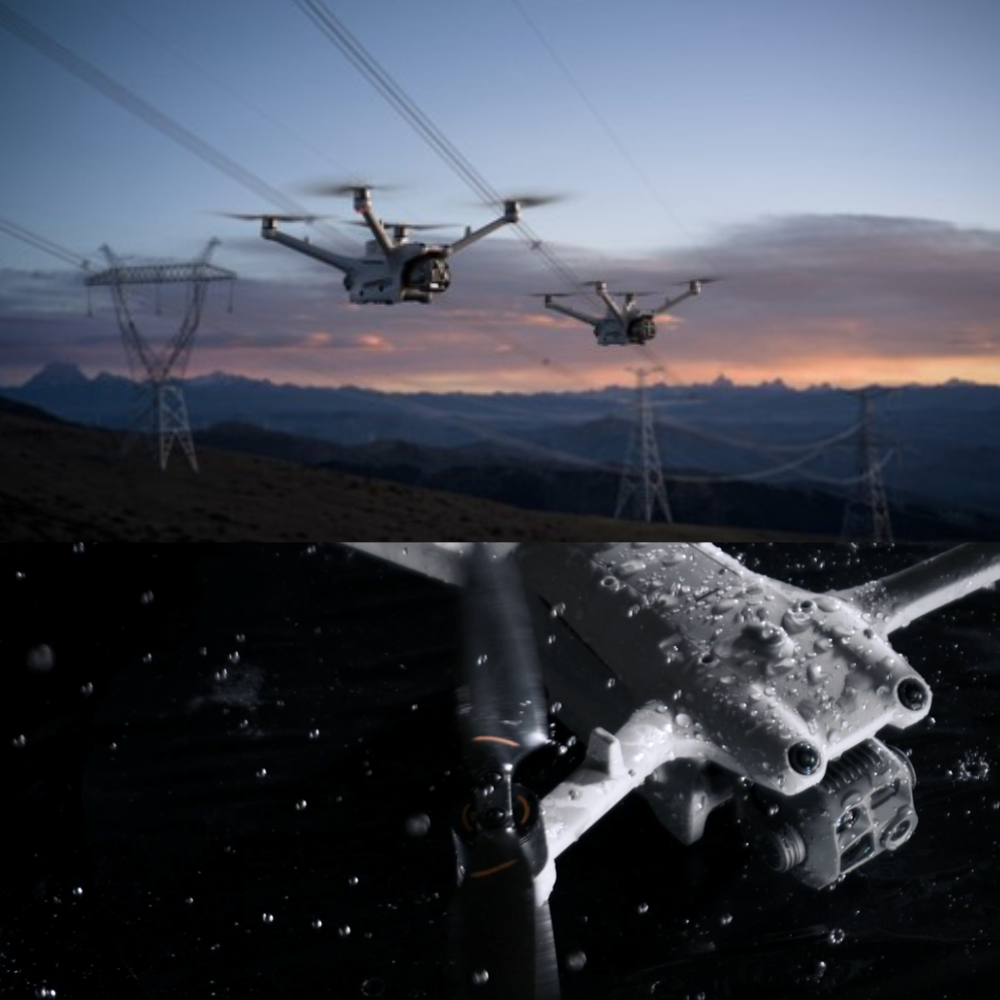

The DJI Matrice 4TD is a compact, intelligent enterprise drone designed for professional inspections, infrastructure monitoring, public safety and emergency response.
Combining high-resolution visual cameras, advanced thermal imaging, laser measurement and intelligent flight capabilities, the Matrice 4TD provides a versatile solution for organisations that need detailed aerial data and the ability to inspect assets remotely.
Designed to integrate with the DJI Dock 3, the Matrice 4TD can also support automated drone operations, helping organisations carry out repeatable inspections and monitor assets from a central location.
Key Features:
Advanced Multi-Sensor Imaging
The Matrice 4TD incorporates multiple imaging sensors into one compact aircraft, including:
• 48MP wide-angle camera
• 48MP medium telephoto camera
• 48MP telephoto camera
• Infrared thermal imaging camera
• Integrated laser rangefinder
• Near-infrared auxiliary light
This combination allows operators to capture detailed visual and thermal information, helping identify potential issues and assess assets from different perspectives.
High-Performance Thermal Imaging
The integrated thermal camera provides detailed infrared imagery for applications where temperature differences are important.
With a 640 × 512 thermal sensor, spot and area temperature measurement, and multiple colour palettes, the Matrice 4TD helps operators identify temperature anomalies and investigate potential faults.
Thermal imaging applications include:
• Electrical infrastructure inspections
• Solar panel inspections
• Building and roof inspections
• Industrial equipment inspections
• Emergency response
• Search and rescue
• Environmental monitoring
Advanced Visual Imaging and Zoom
The Matrice 4TD features wide-angle, medium telephoto and telephoto cameras, allowing operators to capture detailed imagery of assets and structures.
Its telephoto camera supports up to 112× maximum hybrid zoom, helping operators examine distant targets while maintaining a safer operating distance.
Low-light imaging modes and electronic dehazing further support image capture in challenging conditions.
Integrated Laser Rangefinder
The integrated laser rangefinder provides distance and target-coordinate measurement capabilities, allowing operators to gather useful information without physically accessing the target.
Features include:
• Distance measurement
• Target coordinate measurement
• Point measurement
• Line measurement
• Area calculation
The laser rangefinder supports straight-line measurement at distances of up to 1.8 km under specified conditions.
Intelligent Flight and Obstacle Sensing
The Matrice 4TD incorporates advanced sensing and obstacle detection to help operators navigate complex environments.
Built-in AI capabilities can assist with detecting people, vehicles and boats, supporting situational awareness during professional operations.
These capabilities can be particularly valuable when inspecting infrastructure, monitoring assets or undertaking operations in challenging environments.
Designed for Remote Operations
The Matrice 4TD is compatible with DJI Dock 3, enabling organisations to develop automated drone workflows for suitable operations.
When integrated with DJI FlightHub 2, the platform can support remote mission planning, flight monitoring and operational management.
This can help organisations carry out repeatable inspections, monitor assets and access aerial information from a central location.
Built for Challenging Environments
The Matrice 4TD features an IP55 protection rating and an operating temperature range of -20°C to 50°C.
With a maximum flight time of up to 54 minutes under controlled test conditions and wind resistance of up to 12 m/s, the aircraft is designed to support demanding professional operations.
Applications:
The DJI Matrice 4TD is suited to a wide range of professional applications.
Infrastructure and Utilities
• Electrical infrastructure inspection
• Powerline and asset monitoring
• Bridge and structural inspection
• Building and roof inspections
Energy and Industry
• Solar panel inspection
• Industrial equipment monitoring
• Thermal inspections
• Asset condition assessment
Public Safety and Emergency Response
• Search and rescue
• Emergency response
• Incident monitoring
• Situational awareness
Environmental Applications
• Forestry monitoring
• Environmental inspection
• Land and asset monitoring
Why Choose the Matrice 4TD?
• Advanced visual and thermal imaging in one compact aircraft
• 48MP wide-angle, medium telephoto and telephoto cameras
• 640 × 512 thermal imaging
• Up to 112× maximum hybrid zoom
• Integrated laser rangefinder
• AI-powered detection capabilities
• Advanced obstacle sensing
• IP55 protection
• Up to 54 minutes maximum flight time under controlled test conditions
• Compatible with DJI Dock 3 for automated operations
• Supports professional inspection and monitoring workflows
The DJI Matrice 4TD is available in standalone package configurations to suit different operational requirements.
Build Your Professional Drone Solution
Whether you are looking to improve inspection efficiency, introduce thermal imaging or develop remote drone operations, the DJI Matrice 4TD provides a flexible enterprise platform for professional applications.
ISS and Iprosurv can advise on the most suitable package, accessories, software and training for your requirements.

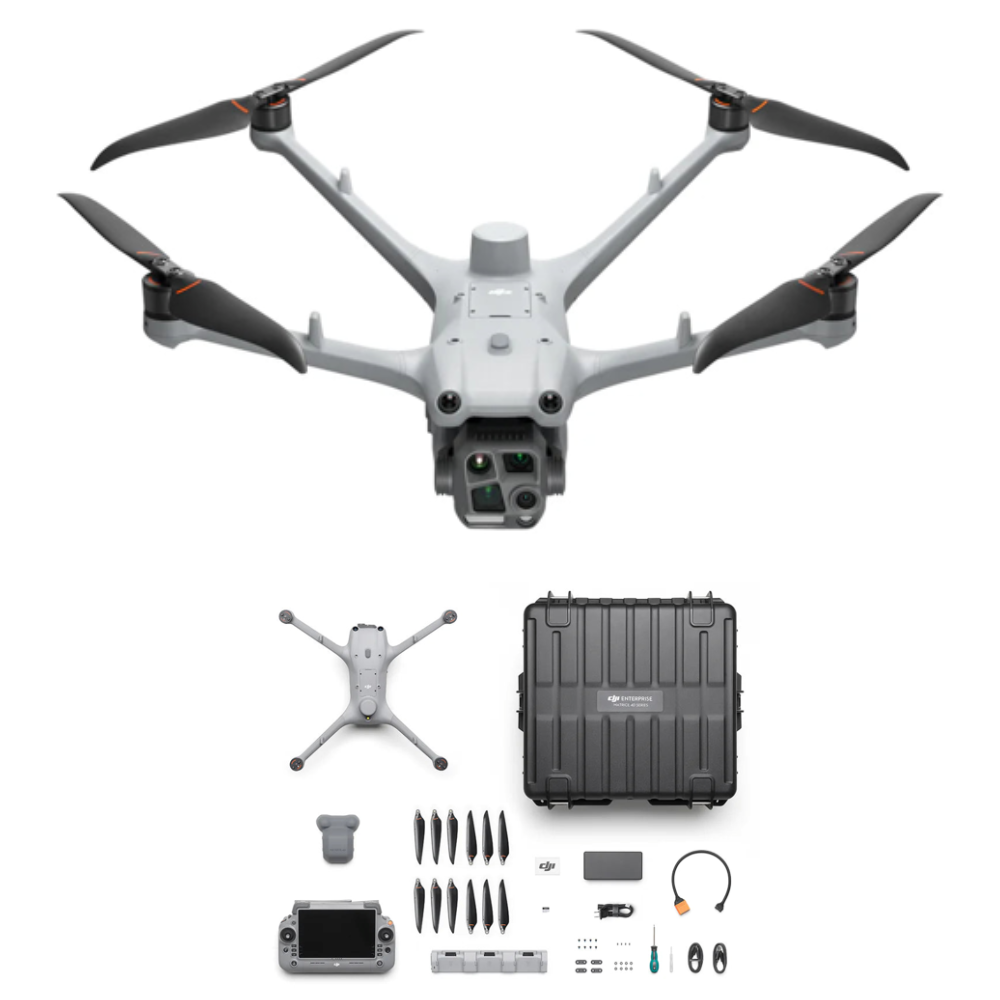

What’s in the box?
o 1x DJI Matrice 4TD
o 1x Battery
o 1x DJI RC Plus 2 Enterprise
o 1x DJI 240W Power Adaptor
o 1x DJI Matrice 4D Series 240W Charging Hub
o 1x DJI Matrice 4D Series Storage Case
o 1x Micro SD Card
