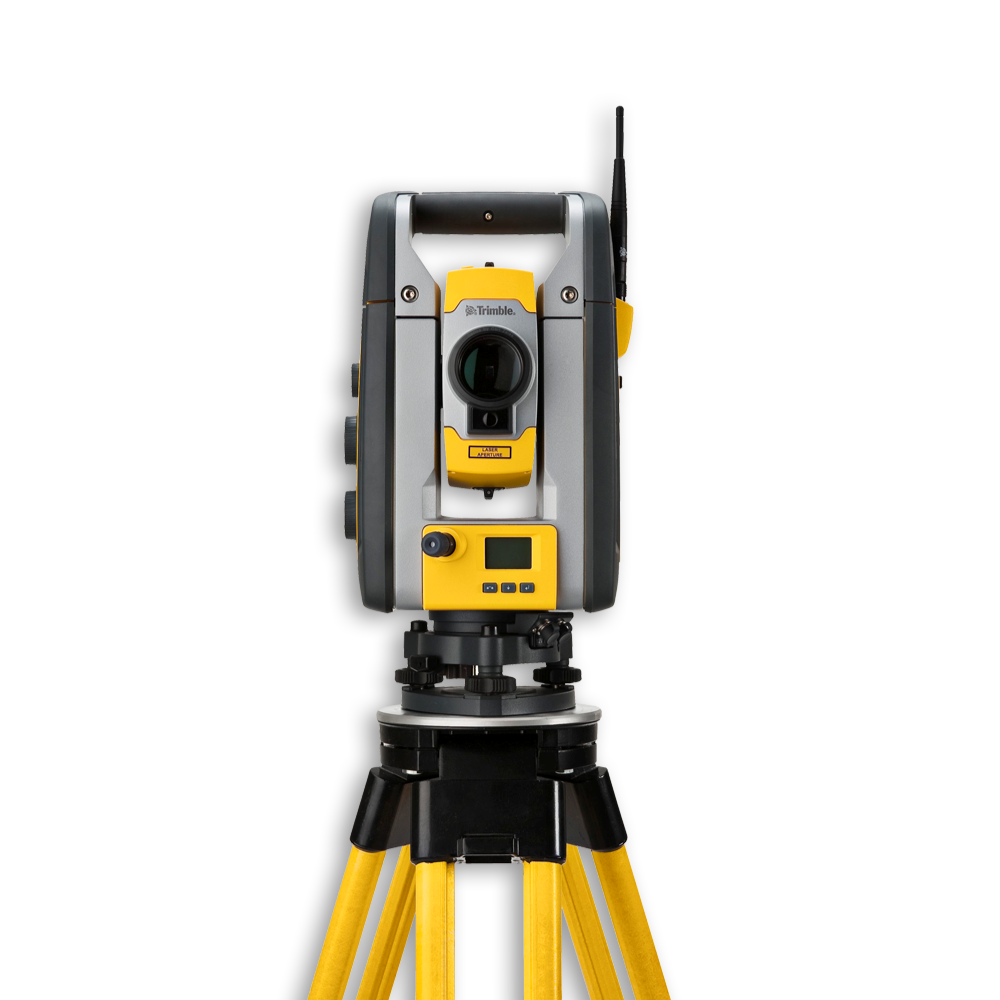

Trimble SPS62 Robotic Total Station

Keep it accurate, but keep it simple.

The SPS620 is perfect for one-person operation on smaller site operations and work on structures such as bridges or culverts, offering very high accuracy and reliability for construction site positioning, stakeout and measurement. No matter what job you are doing, Trimble robotic total stations will deliver unmatched user experience, all-around capability and incredible results, priced for a quick return on investment.

Trimble SPS620 Total Station offers very high accuracy and reliability for construction site positioning, stakeout and measurement. They are very well suited for use on:

• Smaller construction sites or combined with GNSS on larger sites.
• Tasks where the accuracy requirements are tight.
• Measuring dangerous or inaccessible locations.
• Automated target measurement provides a method of checking and warning about movement of ground or buildings that could be affected by construction activities.

The SPS620 uses the Trimble DR Standard long-range reflectorless EDM technology for single-shot measurements and operate with TSC5 controller or Trimble Tablet running the SCS900 Site Controller Software. The SPS620 provides 5 arc second accuracy for the vertical and horizontal angle measurements and features an internal radio which operates in the public free 2.4 GHz band.

Features and Benefits:

• Long life integrated batteries for a full day of uninterrupted work.
• Choice of Trimble controllers or tablets to suit your site needs.
• Intuitive Trimble SCS900 Site Controller Software.
• MultiTrack technology Locks on and tracks passive prisms for control measurements, and active prism targets for dynamic measurements required for grade control applications.
• Prevents costly delays and subsequent rework; faster machine speed means increased productivity and faster results to grade.
• MagDrive Offers fast pointing, aiming and tracking, plus slow motion controls for manual aiming.
• Trimble MagDrive servo technology is an electromagnetic direct drive servo system which gives high turning speeds and accuracy, the frictionless motion removes servo noise and reduces instrument wear.
• Endless horizontal and vertical motion, including fine adjustment.
• Automatic Functions take accurate measurements in less time, and get real-time alerts to make adjustments.
• Automatically corrects for mislevelments /- 6, immediately warns the operator of any mislevelments beyond 6? and average angles during distance measurements to increase consistency, prevent costly delays and subsequent rework.
• When measuring in standard mode, the Trimble SPSx20 Total Station takes approximately 2 seconds to measure the distance.
• Angles returned to the Trimble SPSx20 Total Station at 1000Hz are averaged over the 2 second period to obtain an average angle measurement; the resultant angle measurement is an average of over 2000 observations.
• Includes:Instrument Case, Tribrach without optical plumb, Reflective Foils 25×25 / 60×60, Rain Cover, Rain Lens Cover, Accessory Tool Kit, Test Certificate, Quick start guide.
