C Scope Signal Injector

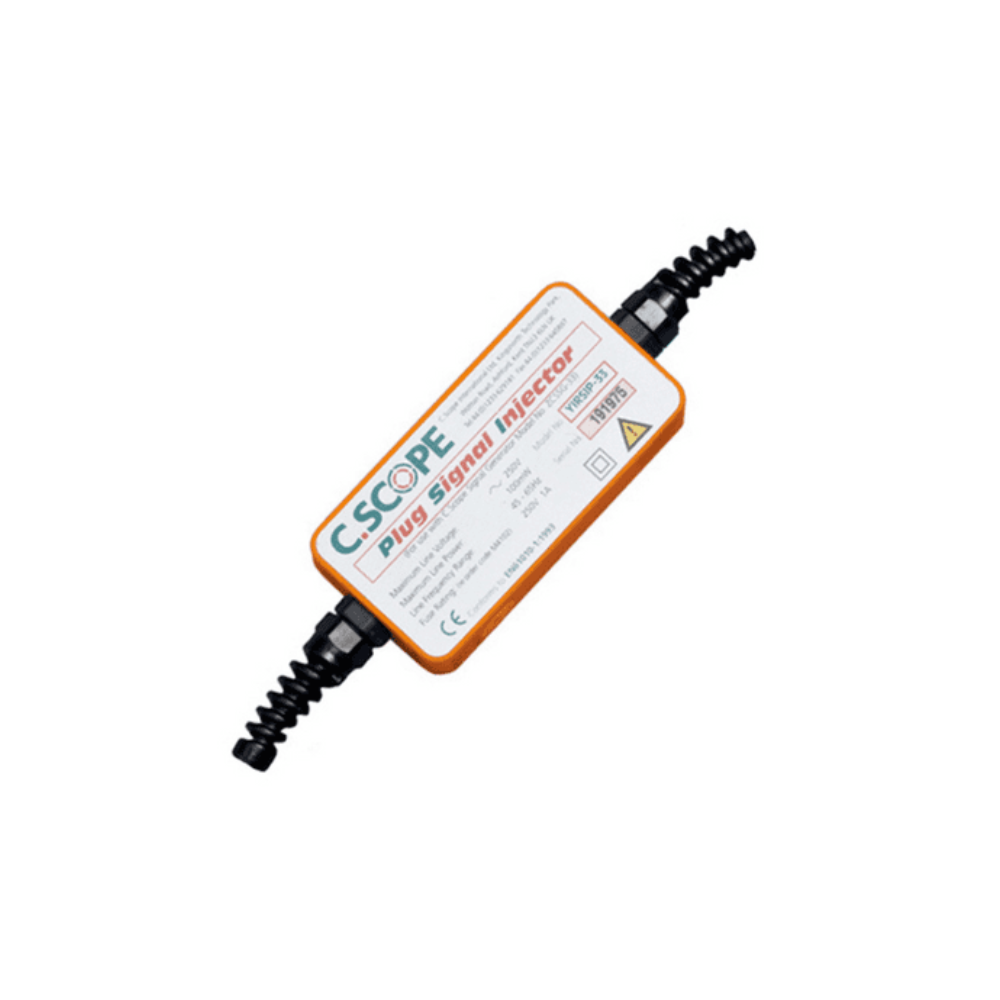

The Signal Injector is an accessory that allows the Signal Generator signal to be safely applied to an electrical system via a conventional 3-pin power socket.

The C.Scope Signal Injector is an accessory which when connected to a C.Scope Signal Generator or Transmitter applies a signal safely to an electrical system via a conventional 3-pin power socket.

This signal will then be detectable on the buried supply cable outside the building and any supply cables within the property.

To transmitted signal can then be detected by a C.Scope Cable Avoidance Tool or Precision Pipe and Cable Locator.

Please contact us or download the brochure if you would like to know more about the C.Scope accessories.

Overview:

• Highly efficient transfer of Signal Generator signal to electricity supply cable.

• Isolates Signal Generator from electrical supply for safety.

• UK or Schuko plug types.

• Fully weatherproof design to IP65.

• Can be used with all C.Scope Locators, Generators and Transmitters.


Specification:

• Product Name - Signal Injector.
• Part No. YIRIP-33-8 - Dimensions, Box: 100mm x 50mm x 25mm, Input Lead: 1m, Output Lead: 1.5m
• Construction - Encapsulated, robust housing, moisture / dust resistant to IP54.
• Electrical Output (Mains side).

• Electrical Isolation: Class II (Double Insulated).

• Mains Plug Connector: UK, 3 pin to BS1363, load between Live and Earth or 2 pin European Shuko style.

• Maximum Voltage: 250 V rms.

• Maximum Load: <10mA (predominantly capacitive).

• Frequency range: 45-65 Hz.
• Electrical Input (Signal Generator side).

• Connector: 3 pin XLR male (industry standard).

• Maximum Voltage: 42 V rms.

• Maximum Power: <250mW when driven from SGA or SGV.

• Input Impedance: 2000 Ohms.

• Frequency: 33 kHz.
