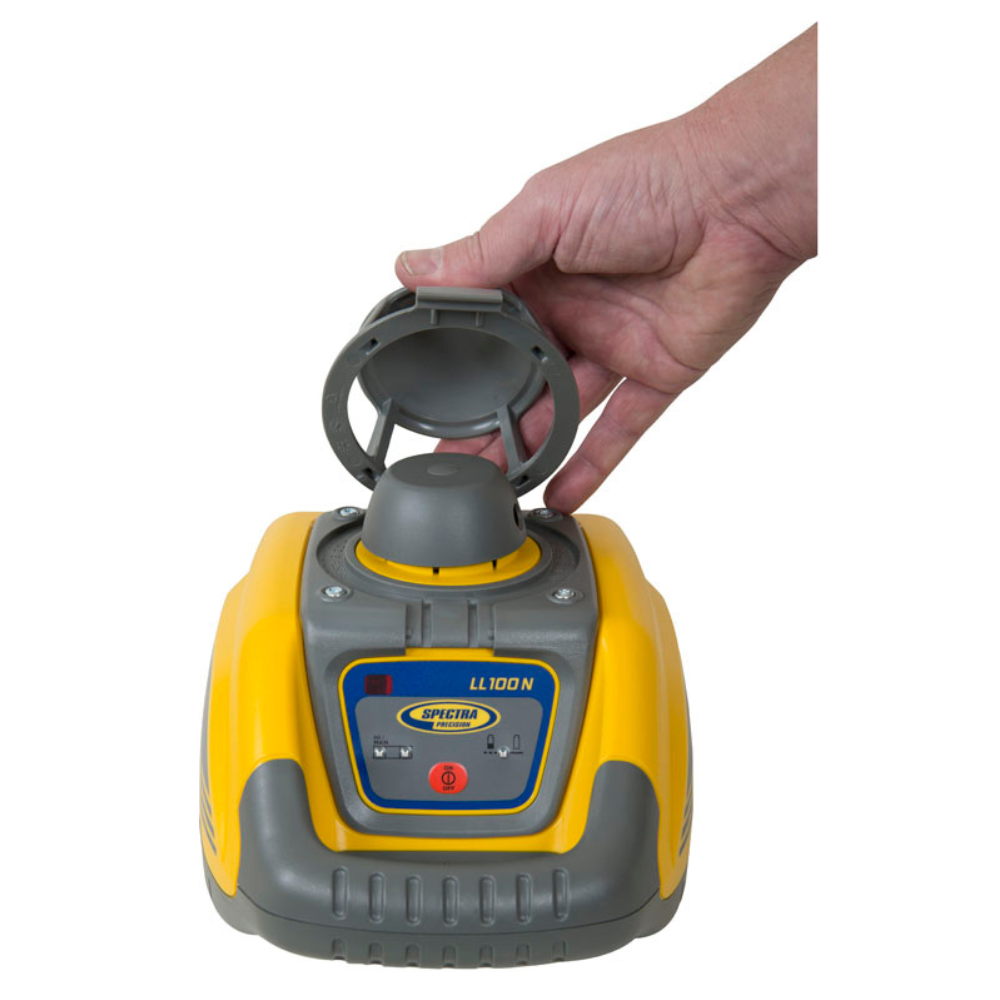

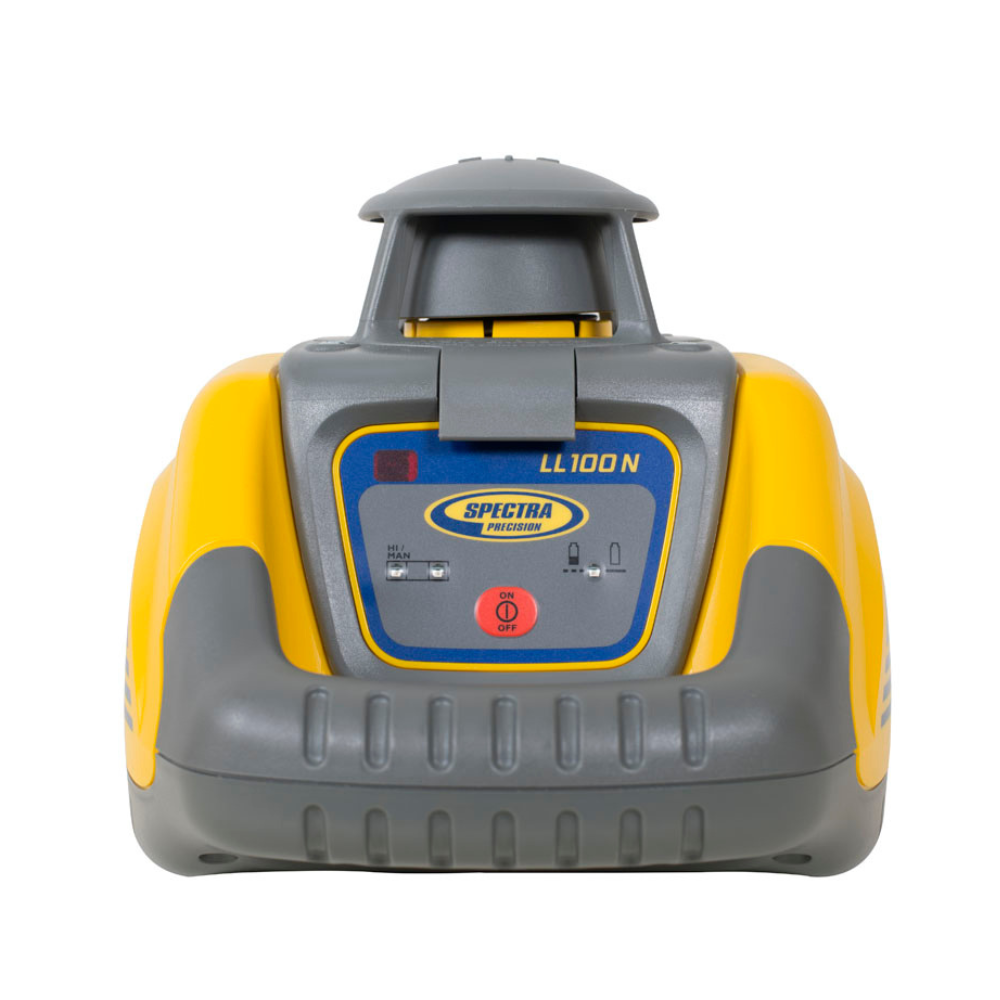

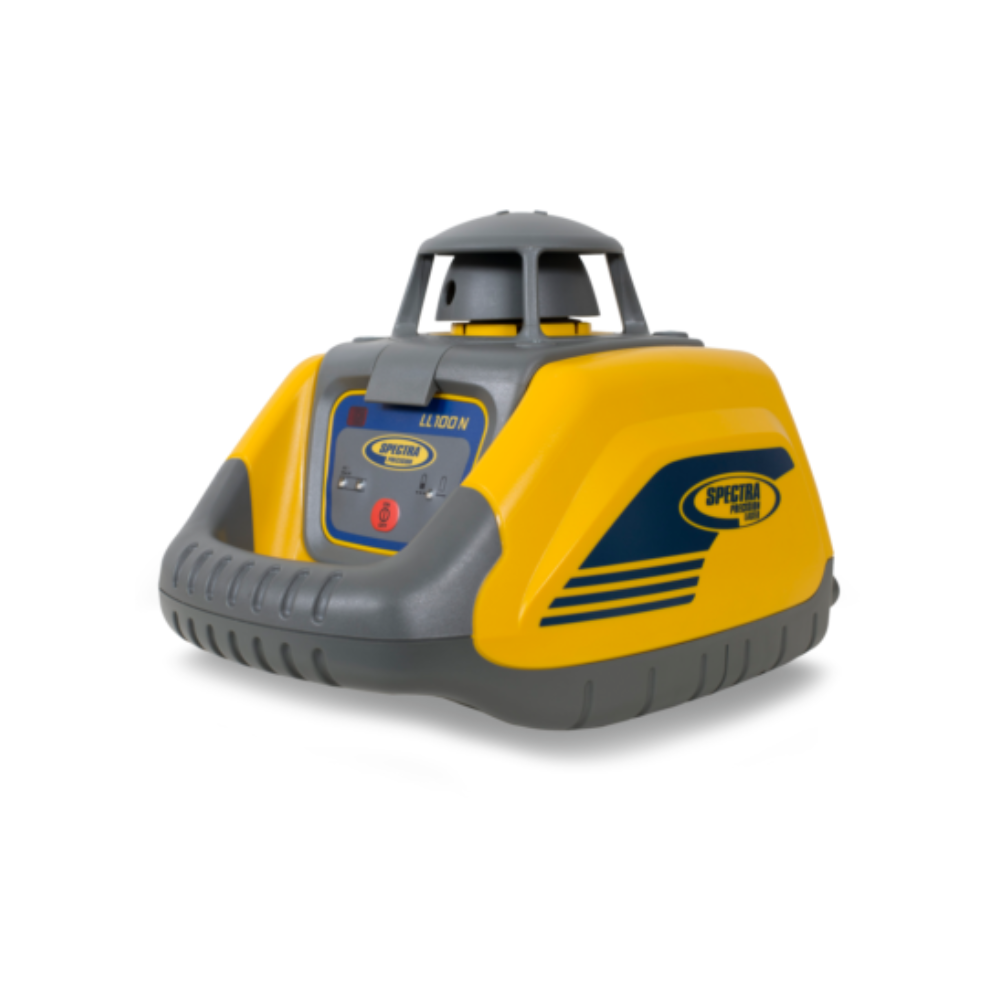

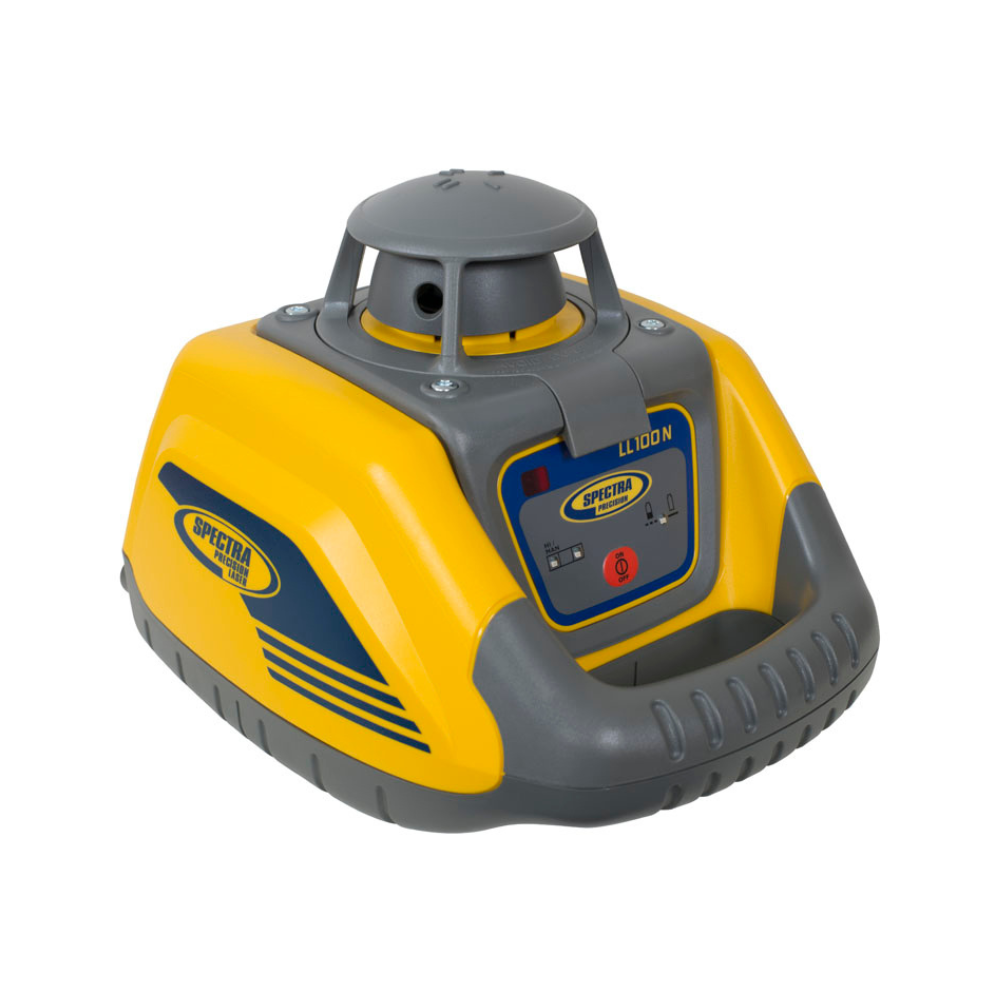

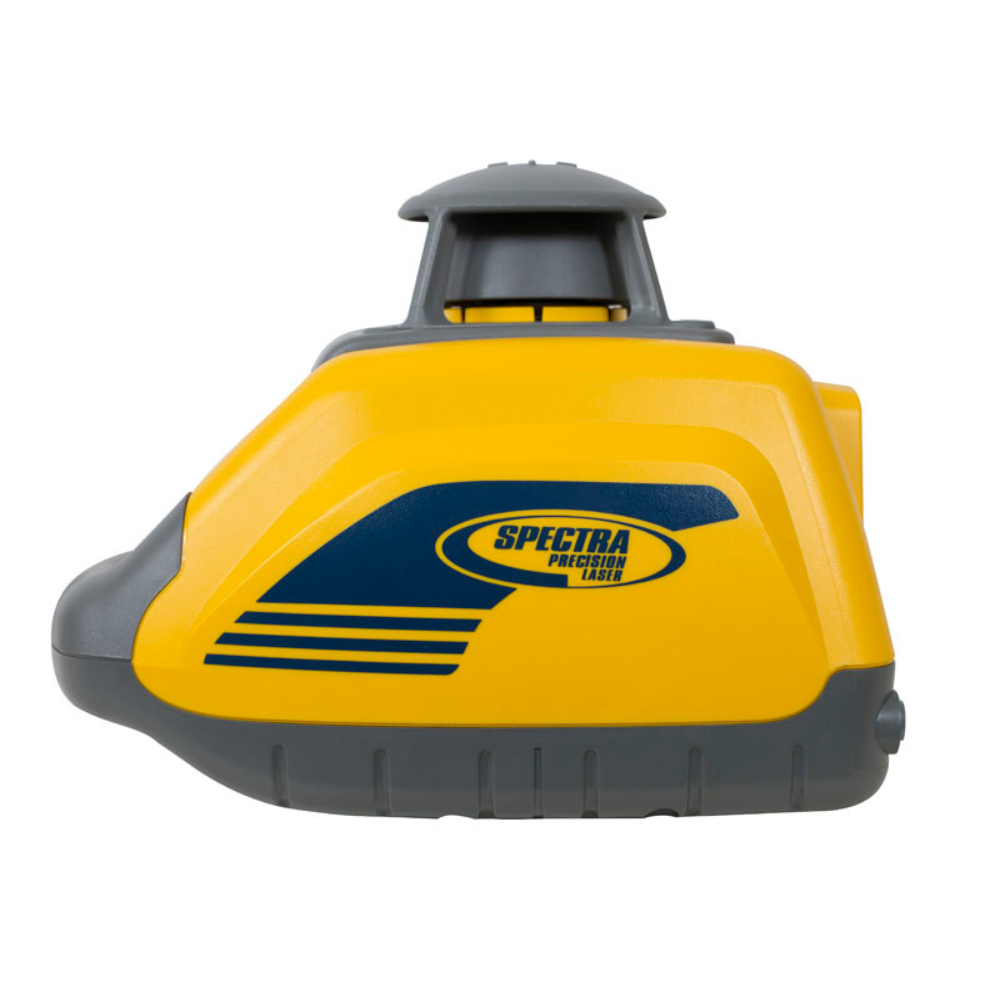

Spectra Precision LL100N Laser Level

First of all the Spectra Precision® LL100N Rotating Laser Level is a complete one man levelling crew in a case. Due to its Automatic, self-levelling fast and accurate setups. In addition the easy, one-button operation requires minimal training.

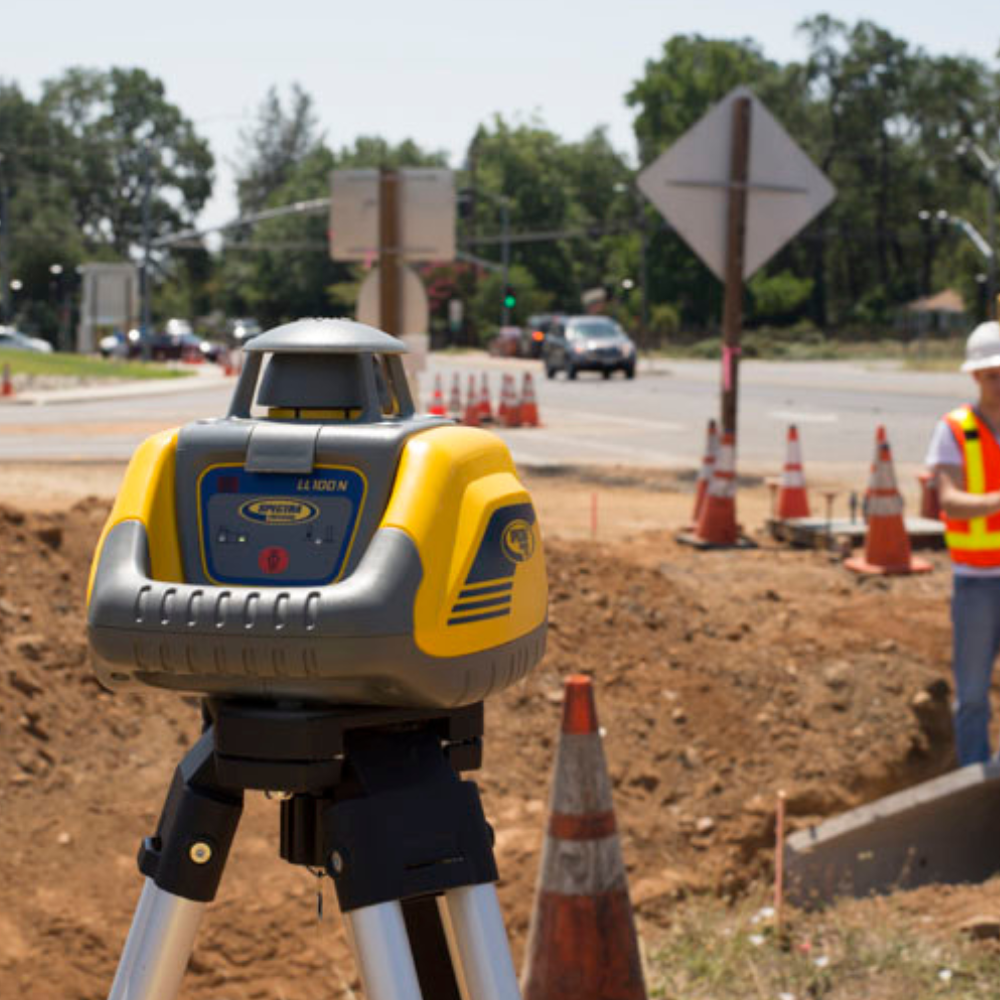

The Spectra Precision LL100N Laser Level is capable of handling a wide variety of elevation control applications. Versatility is added with a single-axis manual slope capability for setting out driveways, ramps and residential drainage lines.

Also, it is rugged enough for the toughest of jobsites and is designed to survive a 3 foot (1 m) drop onto concrete. In addition the Spectra Precision LL100N Laser Level is backed with a a 3-year instant over the counter exchange warranty.

Features & Benefits:

• Firstly the automatic self-levelling increases productivity with fast setups and minimal training.

• Also the one person elevation control up to 575 ft (175 m) away increases productivity.

• The durable construction withstands the toughest of jobsite conditions.

• Furthermore the height of the Instrument alert, stops laser rotation if elevation changes occur to avoid erroneous readings.
• The Spectra Precision HR320 receiver offers 2 accuracies and has grade displays front and rear.

• In addition the exclusive 3-year limited warranty with instant “over the counter” exchange policy eliminates downtime.


Included in this Package:

• Spectra Precision LL100N Laser Level.

• Seco Light Weight alluminium Tripod.

• Seco 5m5s Staff.

• 2xD Cell Batteries.

• Spectra Precision HR320 Receiver.

• C59 Adapter for Receiver.

• Multi Language Operating Manual.

• Small Carrying Case.

• FREE Conformity Certificate.

Receivers:

Overview of the Spectra Precision HR320 Receiver:

The Spectra Precision® HR320 Laser Receiver is a durable laser receiver for exterior levelling applications. Due to the LCD’s on the front and back display a 5 segment grade arrow indicates the grade position. In addition,  the loud beeper can be heard on noisy job sites. Also the fine and medium accuracies are selectable to meet various applications and conditions.

Features & Benefits of the Spectra Precision HR320 Receiver:

The large easy-to-read LCD on the front and rear makes it ideal for exterior applications
Furthermore the ‘snap in rod clamp’ allows fast switching from rod-mounted to handheld applications.

Also, the rugged waterproof housings withstands 5 ft (1.5 m) drops and protects the unit from moisture and dust.

In addition, the two on-grade sensitivities (fine and medium) allows you to get a grade faster, in a variety of applications.

Finally the 100 db loud speaker is easily heard on noisy job sites.

Three year Warranty on the Spectra Precision HR320 Receiver.

Overview of the Spectra Precision HL450 Receiver / Sensor:

Highly versatile Spectra Precision HL450 laser sensor / receiver for basic and advanced levelling and aligning applications.

The Spectra Precision® HL450 Laser Sensor / Receiver is an easy-to-use tool that accurately measures elevations across the site, and is ideal for use with any rotating transmitter.

The Spectra Precision HL450 Laser Sensor / Receiver features a digital readout of elevation that provides a numeric display of ± 40 mm or ±1.5 inches. The readout is displayed on the large front and rear LCD’s and shows exactly how far the elevation is from on-grade. Accurate measurements can be made without moving the rod clamp, saving time and increasing productivity.

This Spectra receiver has a 102 mm (4 inch) reception height, double the typical industry standard, which allows quick acquisition of the laser beam. Also included is a patented anti-strobe sensor that prevents construction lights from setting off the receiver and makes it easier to identify the laser beam signals.

Designed to survive the tough construction site conditions. It is totally waterproof and can withstand a drop up to 1.5 meters (5 feet) onto concrete.

Features & Benefits of the Spectra Precision HL450 Receiver/Sensor:

Digital Readout of Elevation allows faster readings by displaying the exact numerical distance from grade, eliminating the need to move the receiver to get to “on-grade”.

Anti-Strobe Sensor stops construction strobe lights from setting off the receiver and eliminates phantom strikes for easier identification of true laser beam signals.

Large reception height allows faster readings by acquiring the beam quickly, and makes it easier to stay in the beam.

Durable in tough environments provides less downtime due to damage or service requirements after accidental drops.
